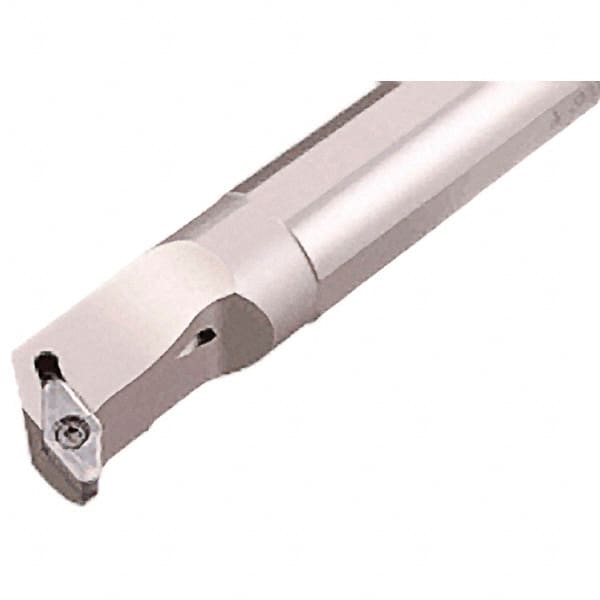

Iscar - 1.77" Min Bore Diam, 13.78" OAL, 1-1/2" Shank Diam, A-SVLFC Indexable Boring Bar - 2.8" Max Bore Depth, VCGT 2205.. Insert, Screw Holding Method
Item #: 91050914
Brand: Iscar
Model #: 3602660
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVLFC |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.7700 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.8000 |
| Overall Length (Decimal Inch) | 13.7800 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | VCGT 2205.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -8 |
| Complete Insert Compatibility | VCGT 220516-DW; VCGT 220520-DWVCGT 220530-DW; VCGT 220530-AS |
| Toolholder Material | Steel |
