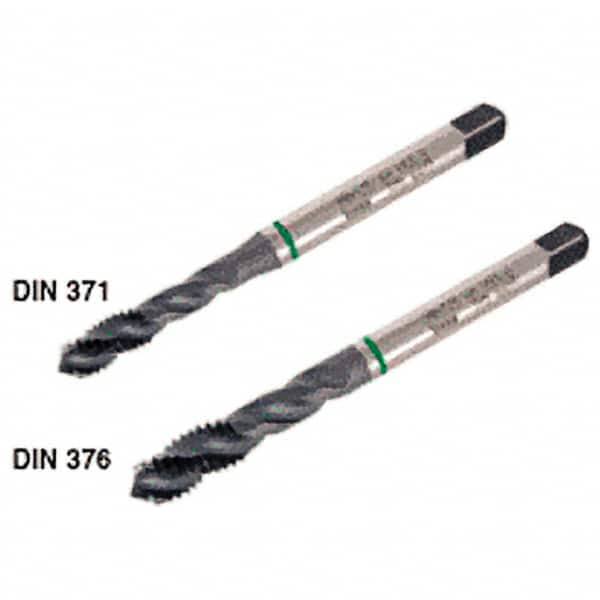

Iscar - M4.5x0.75 Metric Coarse 6H Spiral Flute Tap - High Speed Steel, 70mm OAL, Right Hand Flute, Right Hand Thread, Series TP5
Item #: 91101394
Brand: Iscar
Model #: 4445106
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M4.5x0.75 |
| Class of Fit | 6H |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 70.00 |
| Helix Angle | 40 |
| Thread Standard | Metric Coarse |
| Oversize | No |
| Thread Length (mm) | 8.00 |
| Flute Type | Fast Spiral |
| Series/List | TP5 |
| Shank Diameter (mm) | 6.00 |
| Material Application | Low Alloy Steel |
