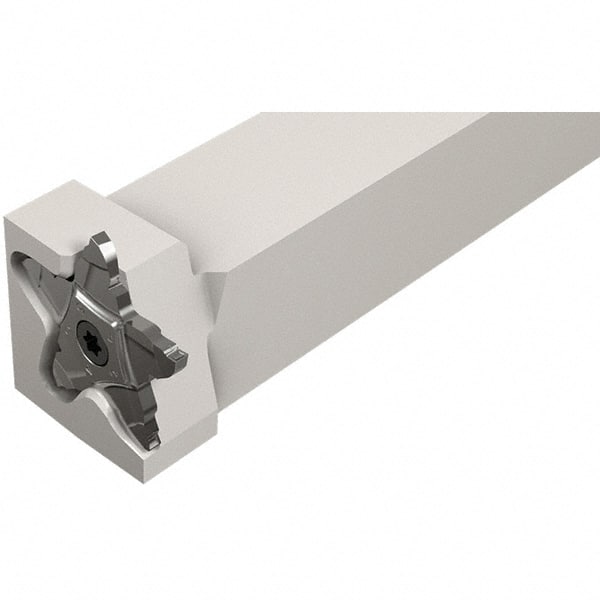

Iscar - External Thread, 0.197" Max Depth of Cut, 2.39mm Min Groove Width, 5-1/2" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, C#-ASH../HSK A63WH-ASH.. Insert Style, PCHPLS Toolholder Style, Series PentaCut
Item #: 91101618
Brand: Iscar
Model #: 2302822
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Minimum Groove Width (Decimal Inch) | 0.0940 |
| Minimum Groove Width (mm) | 2.39 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | PentaCut |
| Toolholder Style | PCHPLS |
| Insert Compatibility | C#-ASH..; HSK A63WH-ASH.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Complete Insert Compatibility | C#-ASHR/L; HSK A63WH-ASHN-45; HSK A63WH-ASHR/L-45; HSK A63WH-ASHR/L-1; PENTA 34F-RS/LS |
