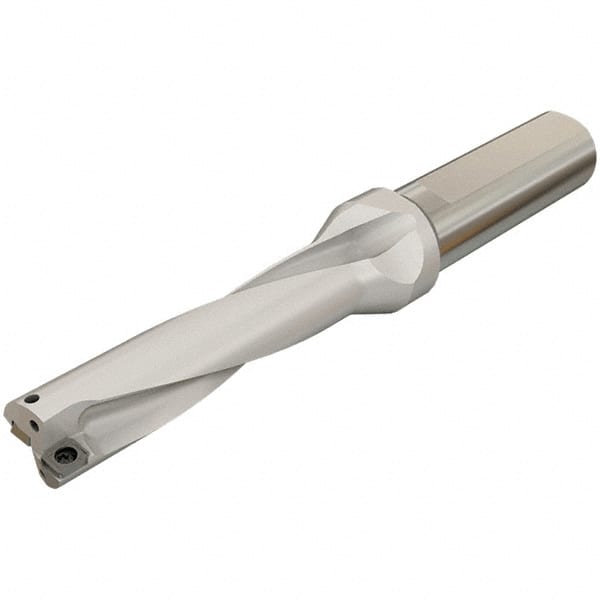

Iscar - 204mm Max Drill Depth, 4xD, 51mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 91104497
Brand: Iscar
Model #: 3201483
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 51.00 |
| Drill Diameter (Decimal Inch) | 2.0079 |
| Maximum Drill Depth (mm) | 204.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 54.50 |
| Overall Length/Projection (mm) | 307.00 |
| Insert Compatibility | SOMT-DT; SOMT-GF; SOMX-DT |
| Body Length (mm) | 239.00 |
| Shank Length (mm) | 68.00 |
| Collar Diameter (mm) | 60.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | G3/4-14 |
