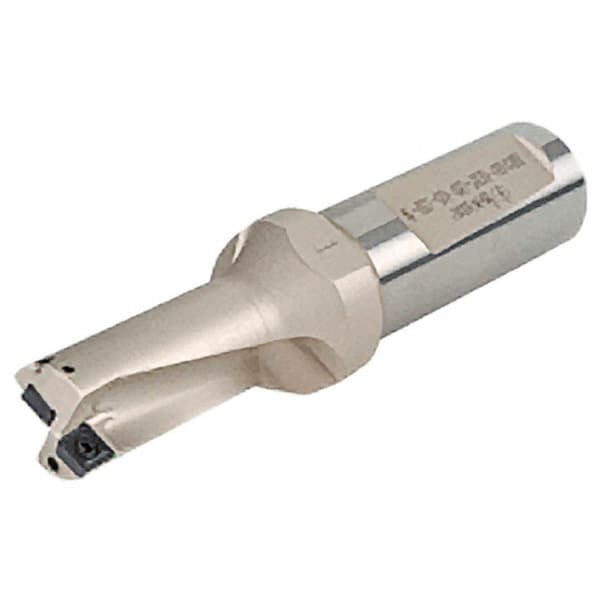

Iscar - 120mm Max Drill Depth, 5xD, 24mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Whistle Notch Shank
Item #: 91104679
Brand: Iscar
Model #: 3202363
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 24.00 |
| Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (mm) | 120.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 25.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 25.50 |
| Overall Length/Projection (mm) | 196.00 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (mm) | 140.00 |
| Shank Length (mm) | 56.00 |
| Collar Diameter (mm) | 32.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | G3/8 |
