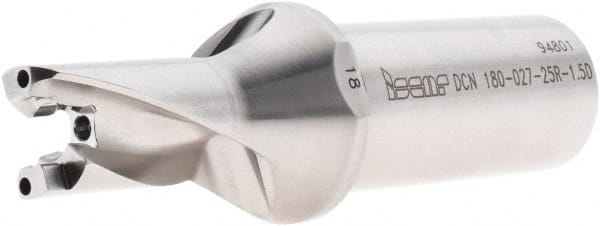

Iscar - 18mm to 18.9mm Diam, 1.5xD, 27mm Max Depth, 25mm Shank Diam, 111.5mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 18 Seat Size, 91104893 Toolholder, Series SumoCham
Item #: 91104893
Brand: Iscar
Model #: 3202693
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 27.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 18 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 55.50 |
| Overall Length (mm) | 111.50 |
| Shank Length (mm) | 56.00 |
