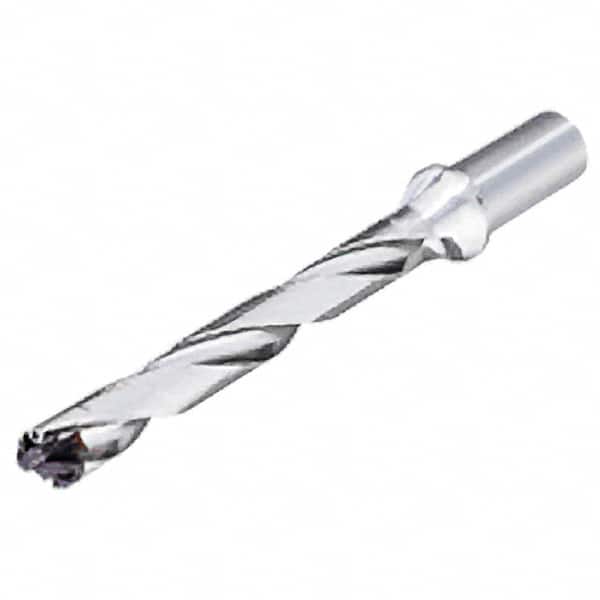

Iscar - 14.5mm to 14.9mm Diam, 8xD, 116mm Max Depth, 16mm Shank Diam, 184.2mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 14 Seat Size, 91105148 Toolholder, Series SumoCham
Item #: 91105148
Brand: Iscar
Model #: 3203206
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (mm) | 14.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 116.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 14 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 136.20 |
| Overall Length (mm) | 184.20 |
| Shank Length (mm) | 48.00 |
