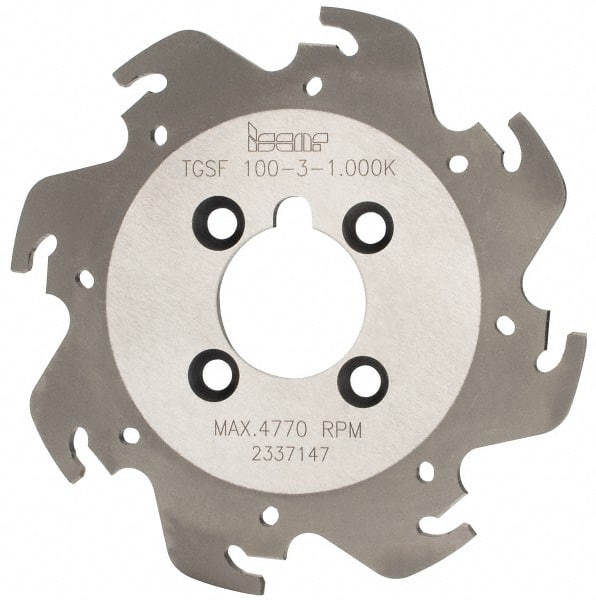

Iscar - Arbor Hole Connection, 0.118" Cutting Width, 1.04" Depth of Cut, 3-15/16" Cutter Diam, 1" Hole Diam, 8 Tooth Indexable Slotting Cutter - TGSF Toolholder, TAG N3 Insert, Right Hand Cutting Direction
Item #: 91105825
Brand: Iscar
Model #: 2302201
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (Decimal Inch) | 1.0400 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 8 |
| Toolholder Style | TGSF |
| Series | TangSlit(TGSF) |
| Insert Style | TAG N3 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 4470 |
| Cutting Radius (Inch) | 1/64 |
| Cutter Body Width (Decimal Inch) | 0.0980 |
| Manufacturers Catalog Number | TGSF100-3-1.000K |
| Complete Insert Compatibility1 | TAG N3A; TAG N3CB; TAG N3J; TAG N3LF; TAG N3UT |
