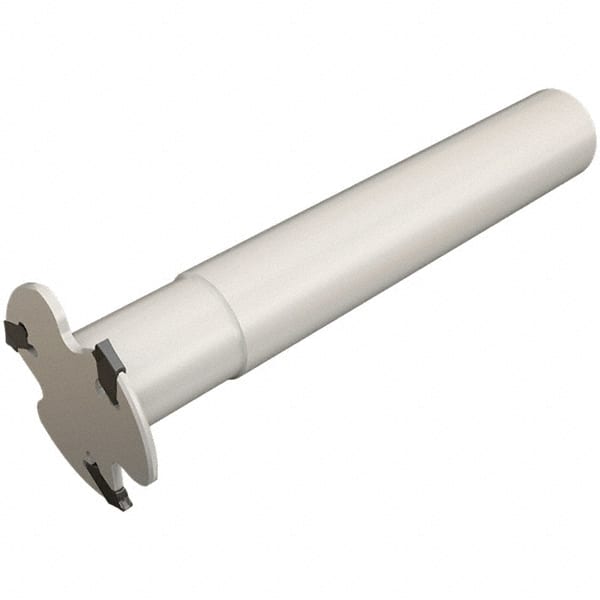

Iscar - Shank Connection, 0.071" Cutting Width, 7mm Depth of Cut, 32mm Cutter Diam, 3 Tooth Indexable Slotting Cutter - 0.63" Shank Diam, SGSF-W Toolholder, GSFN, GSFU Insert, Right Hand Cutting Direction
Item #: 91105866
Brand: Iscar
Model #: 2302437
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.0710 |
| Maximum Depth of Cut (mm) | 7.00 |
| Cutter Diameter (mm) | 32.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Number of Teeth | 3 |
| Toolholder Style | SGSF-W |
| Series | Self-Grip(SGSF-W) |
| Insert Style | GSFN; GSFU |
| Staggered Tooth | No |
| Number of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.0710 |
| Maximum Cutting Width (mm) | 2.69 |
| Cutting Radius (Inch) | 1/32 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | GSFN 1.6; GSFU 1.6; GSFU 1.7 |
