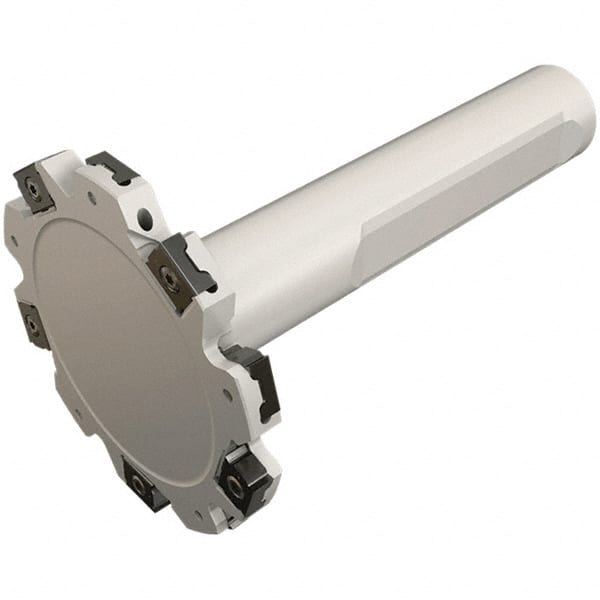

Iscar - Shank Connection, 0.157" Cutting Width, 21.4mm Depth of Cut, 63mm Cutter Diam, 10 Tooth Indexable Slotting Cutter - 0.787" Shank Diam, ETS-LN08 Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 91105916
Brand: Iscar
Model #: 3104026
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 21.40 |
| Cutter Diameter (mm) | 63.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Number of Teeth | 10 |
| Toolholder Style | ETS-LN08 |
| Series | Mini-TangSlot(ETS-LN08) |
| Insert Style | LNET |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Cutting Width (mm) | 4.50 |
| Cutting Radius (Inch) | 1/64 |
| Shank Length (Decimal Inch) | 4.1540 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | LNET 081804-TN-N |
