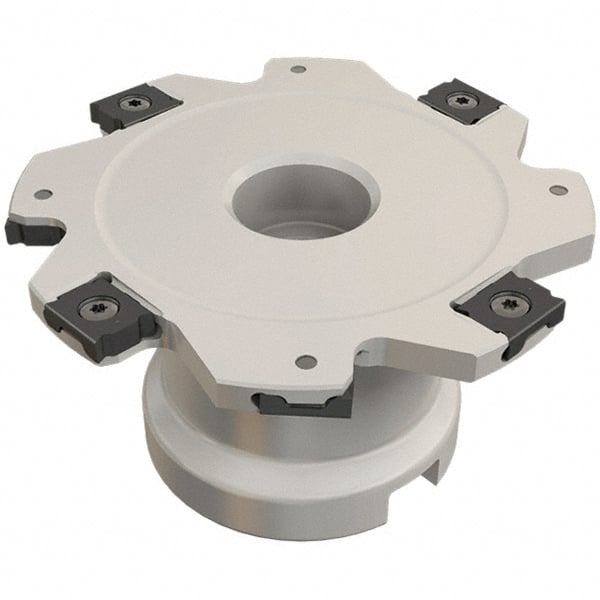

Iscar - Shell Mount B Connection, 0.197" Cutting Width, 26mm Depth of Cut, 100mm Cutter Diam, 27mm Hole Diam, 12 Tooth Indexable Slotting Cutter - FDN-LN08 Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 91106013
Brand: Iscar
Model #: 3106214
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 26.00 |
| Cutter Diameter (mm) | 100.00 |
| Hole Diameter (mm) | 27.00 |
| Number of Teeth | 12 |
| Toolholder Style | FDN-LN08 |
| Series | Mini-TangSlot(FDN-LN08) |
| Insert Style | LNET |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1970 |
| Maximum Cutting Width (mm) | 5.50 |
| Hub Diameter (mm) | 55.00 |
| Keyway Width (mm) | 12.40 |
| Cutting Radius (Inch) | 1/64 |
| Complete Insert Compatibility1 | LNET 081804-TN-N |
