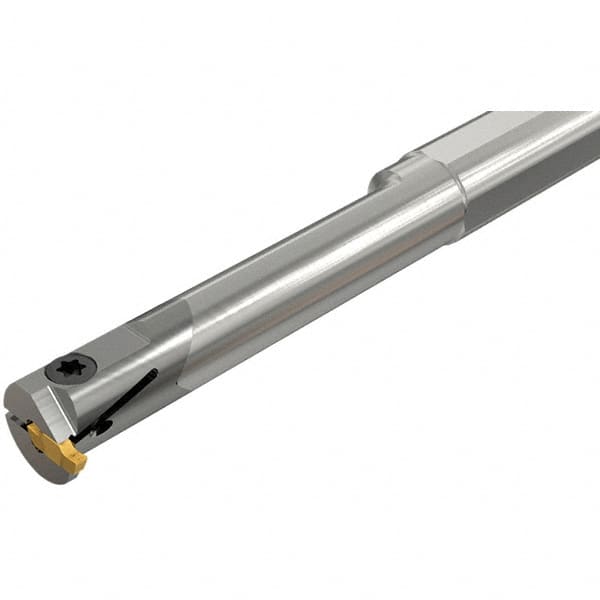

Iscar - 14mm Min Bore Diam, 125mm OAL, 12mm Shank Diam, GEHI Indexable Boring Bar - 2.6mm Max Bore Depth, GE.I Insert, Clamp Holding Method
Item #: 91108191
Brand: Iscar
Model #: 2801293
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 14.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 2.60 |
| Overall Length (mm) | 125.00 |
| Shank Diameter (mm) | 12.00 |
| Insert Compatibility | GE.I |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 9.10 |
| Coolant Hole Diameter (mm) | 6.00 |
| Complete Insert Compatibility | GEMI 3002M; GEPI 2.47-0.20; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05; GEPI 2.50-0.20; GEPI 2.50-0.10; GEPI 2.70-0.20; GEPI 3.00-1.50; GEPI 3.00-0.20; GEPI 3.18-1.59 |
| Toolholder Material | Carbide |
