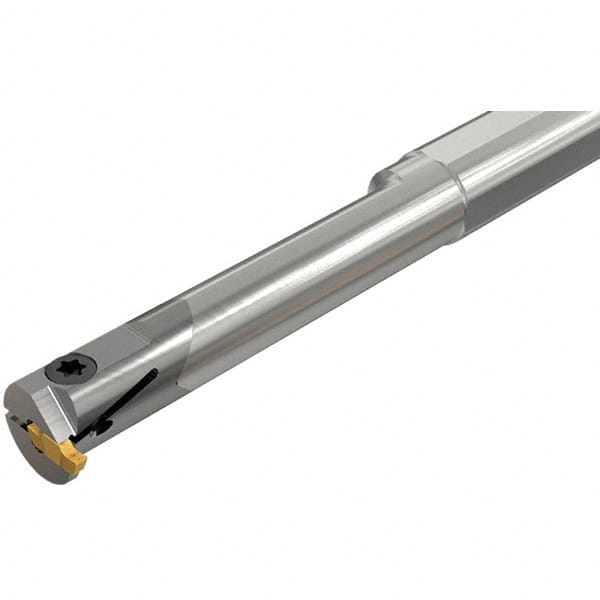

Iscar - 12.5mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, GEHI Indexable Boring Bar - 2.4mm Max Bore Depth, GEPI Insert, Clamp Holding Method
Item #: 91108209
Brand: Iscar
Model #: 2801289
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 12.50 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 2.40 |
| Overall Length (mm) | 125.00 |
| Shank Diameter (mm) | 10.00 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 7.50 |
| Coolant Hole Diameter (mm) | 3.50 |
| Complete Insert Compatibility | GEPI 1.96-0.15; GEPI 1.96-0.10; GEPI 2.00-1.00; GEPI 2.00-0.10; GEPI 2.22-0.15; GEPI 2.22-0.10 |
| Toolholder Material | Carbide |
