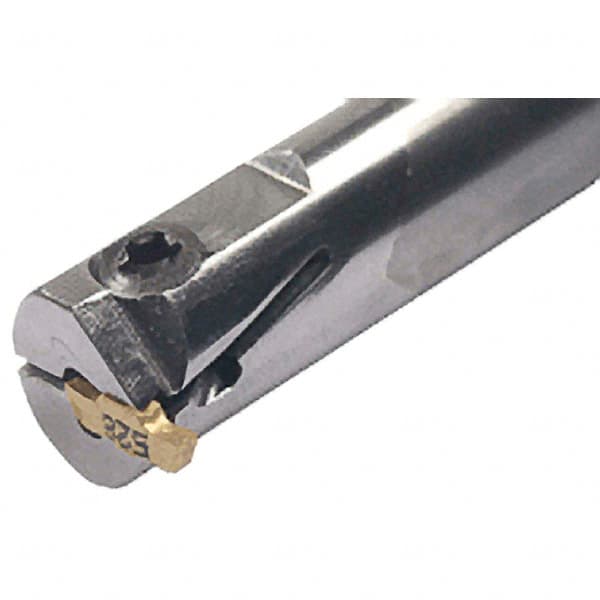

Iscar - 12.5mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, GEHIM Indexable Boring Bar - 2.5mm Max Bore Depth, GEPI Insert, Clamp Holding Method
Item #: 91108233
Brand: Iscar
Model #: 2801279
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHIM |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 12.50 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 2.50 |
| Overall Length (mm) | 125.00 |
| Shank Diameter (mm) | 10.00 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 7.60 |
| Coolant Hole Diameter (mm) | 3.50 |
| Complete Insert Compatibility | GEPI 0.80-0.00RX; GEPI 1.00-0.10; GEPI 1.00-0.10 LX; GEPI 1.00-0.10 RX; GEPI 1.00-0.50; GEPI 1.04-0.00; GEPI 1.20-0.00; GEPI 1.25-0.10; GEPI 1.57-0.15RX; GEPI 1.85-0.10; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05 |
| Toolholder Material | Carbide |
