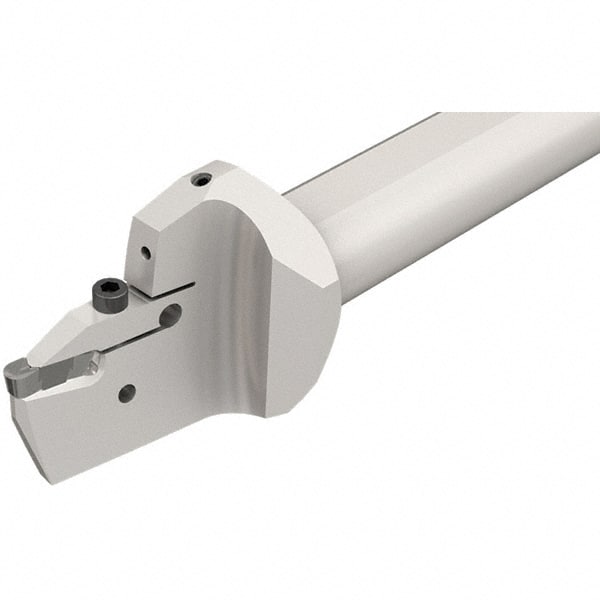

Iscar - 11.8" Min Bore Diam, 13" OAL, 1-1/2" Shank Diam, GHIF Indexable Boring Bar - 3.94" Max Bore Depth, GDMA 840, GIDA 80-40.. Insert, Clamp Holding Method
Item #: 91108266
Brand: Iscar
Model #: 2801004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIF |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 11.8000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 3.9400 |
| Overall Length (Decimal Inch) | 13.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | GDMA 840; GIDA 80-40.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Lead Angle | 8 |
| Center to Cutting Edge (Decimal Inch) | 0.7300 |
| Complete Insert Compatibility | GDMA 840; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D |
| Toolholder Material | Steel |
