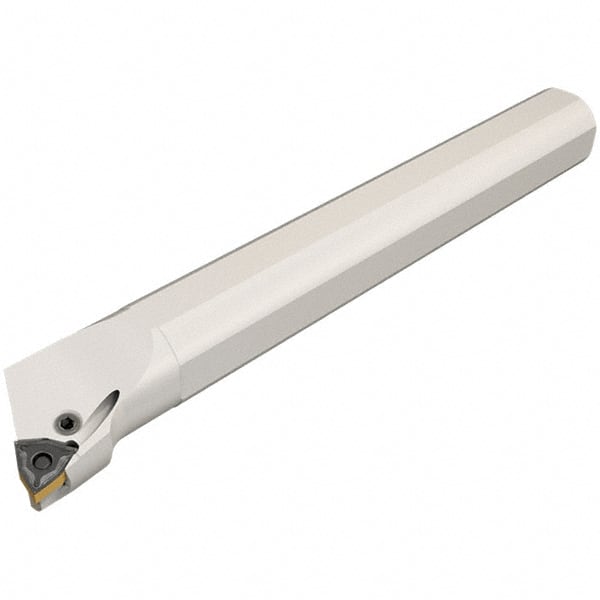

Iscar - 25mm Min Bore Diam, 180mm OAL, 20mm Shank Diam, A-PWLN Indexable Boring Bar - 36mm Max Bore Depth, WNM.. 06T3.. Insert, Clamp Holding Method
Item #: 91111252
Brand: Iscar
Model #: 3606571
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PWLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 25.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 36.00 |
| Overall Length (mm) | 180.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Compatibility | WNM.. 06T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 13.00 |
| Insert Thickness (Decimal Inch) | 0.1500 |
| Insert Inscribed Circle (mm) | 9.52 |
| Rake Angle | -10 |
| Complete Insert Compatibility | WNMA 06T304; WNMA 06T308; WNMA 06T312; WNMG 06T304-GN; WNMG 06T308-GN |
| Toolholder Material | Steel |
