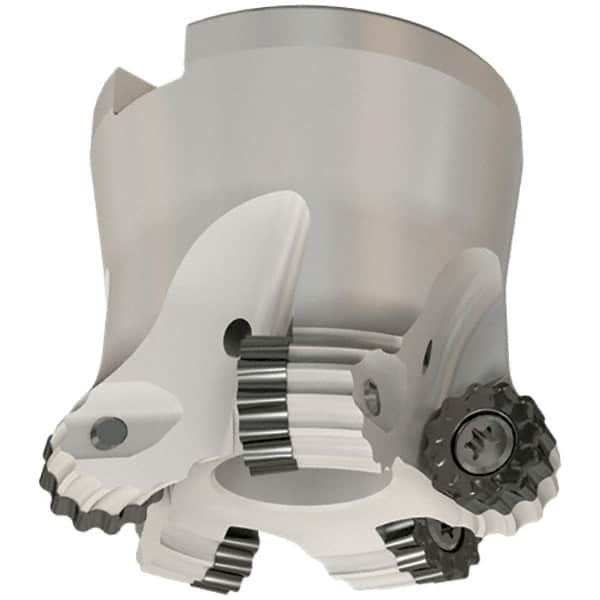

Iscar - 40mm Cut Diam, 6mm Max Depth, 16mm Arbor Hole, 4 Inserts, RC.. Insert Style, Indexable Copy Face Mill - FRW Cutter Style, 40mm High, Through Coolant, Series MillShred
Item #: 91120303
Brand: Iscar
Model #: 3104667
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Overall Height (mm) | 40.00 |
| Series | MillShred |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RC.. |
| Cutter Style | FRW |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (Decimal Inch) | 0.3310 |
| Counterbore Diameter (Decimal Inch) | 0.5510 |
| Complete Insert Compatibility | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
