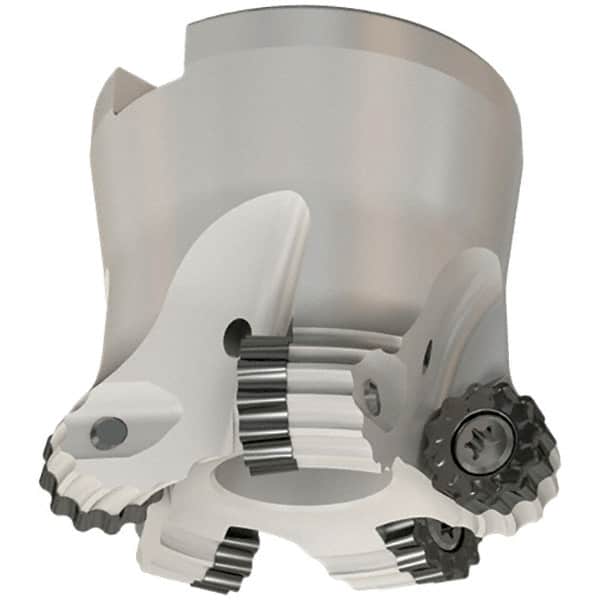

Iscar - 80mm Cut Diam, 10mm Max Depth, 27mm Arbor Hole, 5 Inserts, RC.. Insert Style, Indexable Copy Face Mill - FRW Cutter Style, 50mm High, Series MillShred
Item #: 91120592
Brand: Iscar
Model #: 3104130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Height (mm) | 50.00 |
| Series | MillShred |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RC.. |
| Cutter Style | FRW |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 20.00 |
| Keyway Width (Decimal Inch) | 0.4880 |
| Counterbore Diameter (Decimal Inch) | 1.4170 |
| Complete Insert Compatibility | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
