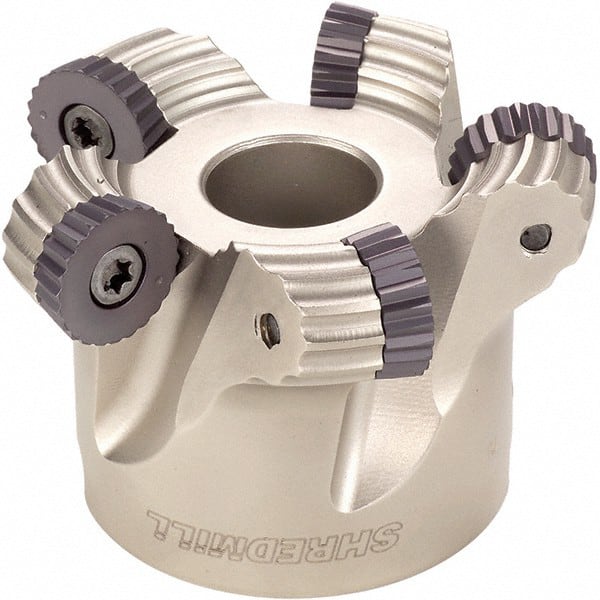

Iscar - 52mm Cut Diam, 8mm Max Depth, 22mm Arbor Hole, 4 Inserts, RC.. Insert Style, Indexable Copy Face Mill - FRW Cutter Style, 50mm High, Through Coolant, Series MillShred
Item #: 91120659
Brand: Iscar
Model #: 3103456
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 50.00 |
| Series | MillShred |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RC.. |
| Cutter Style | FRW |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 16.00 |
| Keyway Width (Decimal Inch) | 0.4090 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
