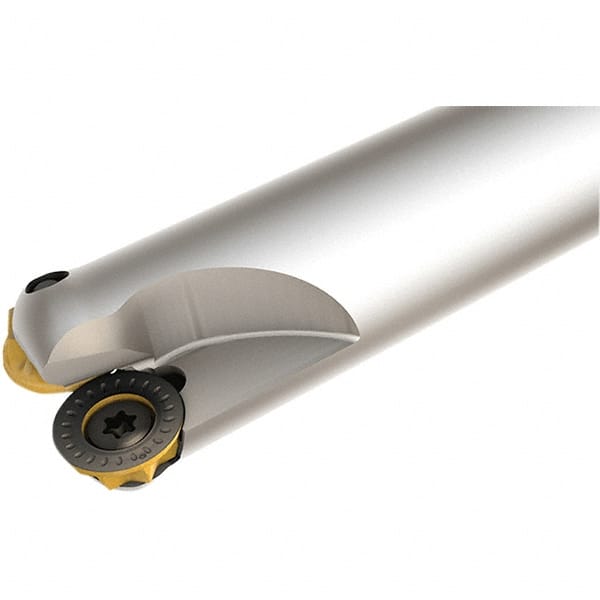

Iscar - 20mm Cutting Diam, 10mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, R90CW, R90MT, RXCR, RXCW, RXMT Insert, ER-M Toolholder
Item #: 91120766
Brand: Iscar
Model #: 3101796
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Cutter Inserts | 2 |
| Insert Style | R90CW; R90MT; RXCR; RXCW; RXMT |
| Toolholder Style | ER-M |
| Series | FlexFit; RoundMill |
| Overall Length (mm) | 30.00 |
| Insert Diameter (mm) | 10.00 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 10.00 |
| Head Length (mm) | 30.00 |
| Modular Connection Size | M10 |
