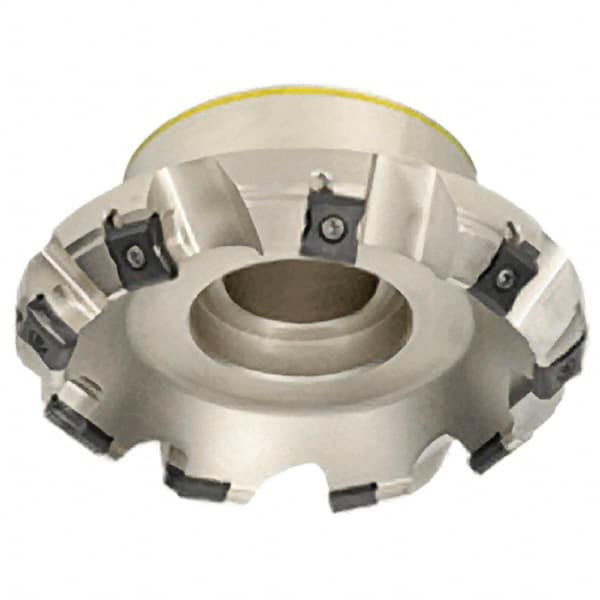

Iscar - 83mm Cut Diam, 22mm Arbor Hole, 7.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, LN.. 1506.. Insert, Right Hand Cut, 8 Flutes, Series TangMill
Item #: 91121319
Brand: Iscar
Model #: 3198692
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 83.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 45 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | LN.. 1506.. |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.50 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F45LN-N15 |
| Number of Flutes | 8 |
| Keyway Width (mm) | 10.90 |
| Maximum Body Diameter (Decimal Inch) | 3.2680 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 1.1420 |
| Complete Insert Compatibility | LNAT 1506AN-W; LNHW 1506 ANTN (Ceramic); LNKX 150608AN-N PL; LNKX/LNMT 150608ANTN MM; LNMW 150608 ANTN |
