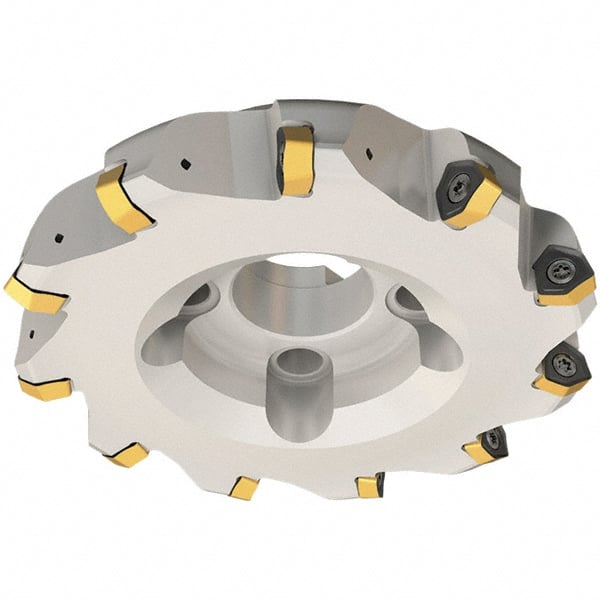

Iscar - 80mm Cut Diam, 32mm Arbor Hole, 3.5mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 6 Inserts, H600 WXCU 08 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Helido
Item #: 91121673
Brand: Iscar
Model #: 3106025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 30 |
| Overall Height (mm) | 55.00 |
| Insert Compatibility | H600 WXCU 08 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MF FWX-08 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 14.40 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0470 |
| Counterbore Diameter (Decimal Inch) | 1.0630 |
| Complete Insert Compatibility | H600 WXCU 08 |
