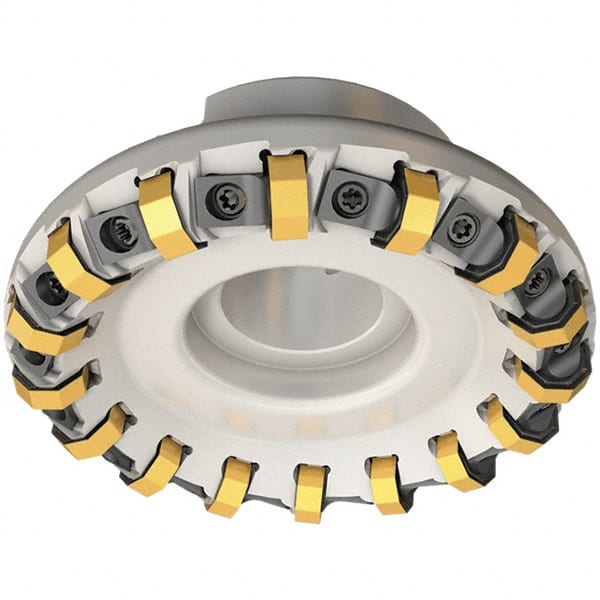

Iscar - 73.4mm Cut Diam, 22mm Arbor Hole, 3.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, ON.U 05\xB6S845 SN.U 13 Insert, Right Hand Cut, 10 Flutes, Series Helido
Item #: 91121723
Brand: Iscar
Model #: 3105785
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 73.40 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 45 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | ON.U 05; S845 SN.U 13 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Wedge |
| Cutter Style | SOF45CL |
| Number of Flutes | 10 |
| Keyway Width (mm) | 10.90 |
| Maximum Body Diameter (Decimal Inch) | 2.8900 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 1.1420 |
| Complete Insert Compatibility | ONHU 0505-W; ONHU/ONMU-05; S845 SNHU 1305-W; S845 SNMU/SNHU-13 |
