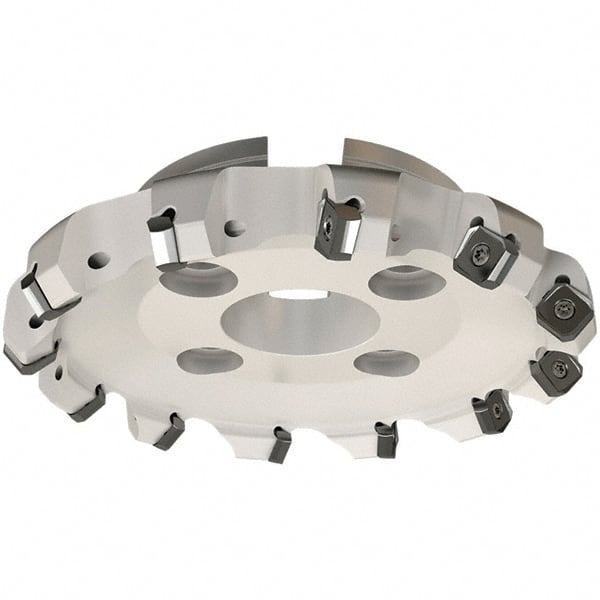

Iscar - 174.8mm Cut Diam, 40mm Arbor Hole, 7.15mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 18 Inserts, S845 SX.U 16.. Insert, Right Hand Cut, 18 Flutes, Series Helido
Item #: 91121905
Brand: Iscar
Model #: 3105058
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 174.80 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 45 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | S845 SX.U 16.. |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.15 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Cutter Style | S845 F45SX-16 |
| Number of Flutes | 18 |
| Keyway Width (mm) | 16.40 |
| Maximum Body Diameter (Decimal Inch) | 6.8820 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 2.1650 |
| Complete Insert Compatibility | S845 SXHU 1606-W; S845 SXMU/SXCU-16 |
