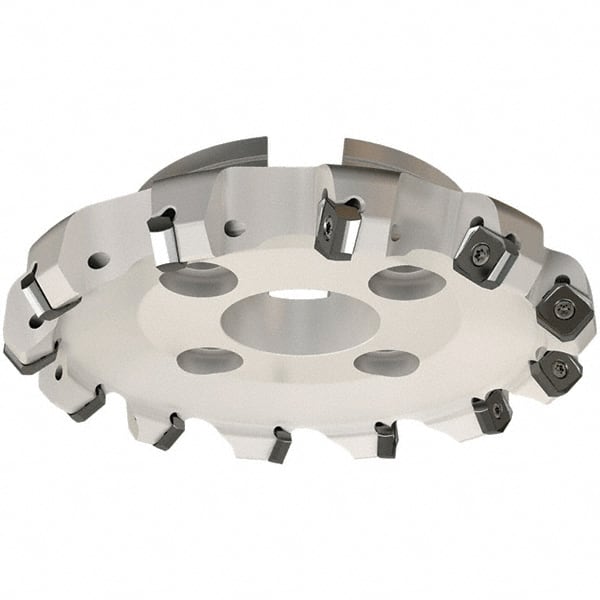

Iscar - 77.9mm Cut Diam, 22mm Arbor Hole, 7.15mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, S845 SX.U 16.. Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series Helido
Item #: 91121921
Brand: Iscar
Model #: 3105053
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 77.90 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 45 |
| Overall Height (mm) | 45.00 |
| Insert Compatibility | S845 SX.U 16.. |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 7.15 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | S845 F45SX-16 |
| Number of Flutes | 7 |
| Keyway Width (mm) | 10.40 |
| Maximum Body Diameter (Decimal Inch) | 3.0670 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | S845 SXHU 1606-W; S845 SXMU/SXCU-16 |
