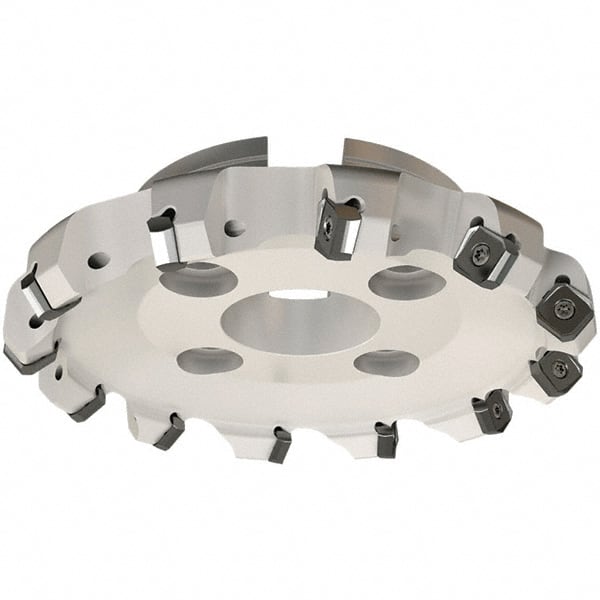

Iscar - 139.8mm Cut Diam, 38.1mm Arbor Hole, 7.15mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, S845 SX.U 16.. Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series Helido
Item #: 91122135
Brand: Iscar
Model #: 3104576
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 139.80 |
| Arbor Hole Diameter (mm) | 38.10 |
| Lead Angle | 45 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | S845 SX.U 16.. |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 7.15 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | S845 F45SX-16 |
| Number of Flutes | 8 |
| Maximum Body Diameter (Decimal Inch) | 5.5040 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | S845 SXHU 1606-W; S845 SXMU/SXCU-16 |
