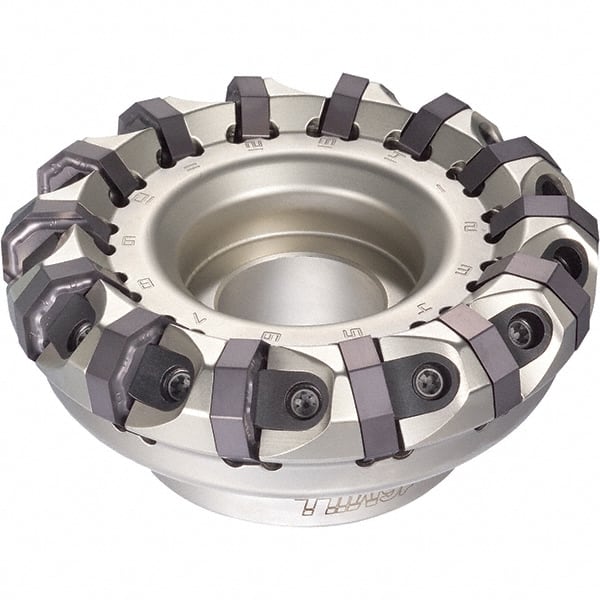

Iscar - 172mm Cut Diam, 40mm Arbor Hole, 5.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 22 Inserts, ONH.. Insert, Right Hand Cut, 22 Flutes, Series 16Mill
Item #: 91122358
Brand: Iscar
Model #: 3103871
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 172.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 45 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | ONH.. |
| Series | 16Mill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 5.50 |
| Number of Cutter Inserts | 22 |
| Insert Holding Method | Screw |
| Cutter Style | F45WG |
| Number of Flutes | 22 |
| Keyway Width (mm) | 16.40 |
| Maximum Body Diameter (Decimal Inch) | 6.2990 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0510 |
| Counterbore Diameter (Decimal Inch) | 2.1650 |
| Complete Insert Compatibility | ONHQ-TN; ONHU 0806-N-PL; ONHU 0806AN-W; ONHU/ONMU 080608 AN-N-HP; ONHU/ONMU-08-TN-MM; ONHU/ONMU-08-TN/HL |
