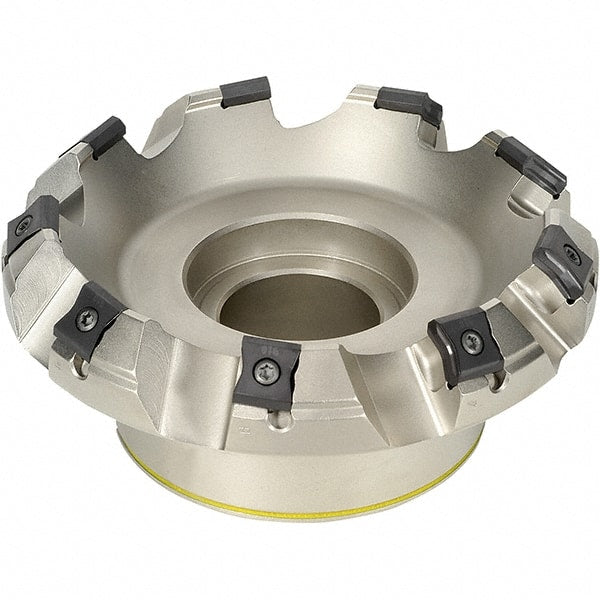

Iscar - 100mm Cut Diam, 25.4mm Arbor Hole, 7.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, LN.. 1506.. Insert, Right Hand Cut, 7 Flutes, Series TangMill
Item #: 91122473
Brand: Iscar
Model #: 3102484
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 25.40 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | LN.. 1506.. |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | F45LN |
| Number of Flutes | 7 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.2950 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | LNAT 1506AN-W; LNHW 1506 ANTN (Ceramic); LNKX 150608AN-N PL; LNKX/LNMT 150608ANTN MM; LNMW 150608 ANTN |
