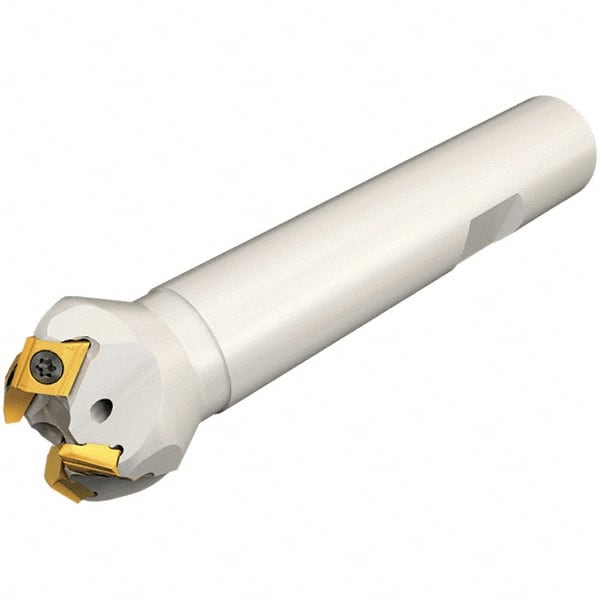

Iscar - 30° Lead Angle, 40.9mm Max Cut Diam, 16mm Min Cut Diam, 7mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, TPMT Insert Style, 100mm Overall Length, Straight Shank, 60° Included Angle
Item #: 91122564
Brand: Iscar
Model #: 3110603
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (mm) | 16.00 |
| Maximum Cutting Diameter (mm) | 40.90 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Lead Angle | 30 |
| Included Angle | 60 |
| Overall Length (mm) | 100.00 |
| Insert Style | TPMT |
| Series | IscarMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | E30 |
| Number of Flutes | 3 |
| Head Length (mm) | 36.40 |
| Weldon Flat | Yes |
