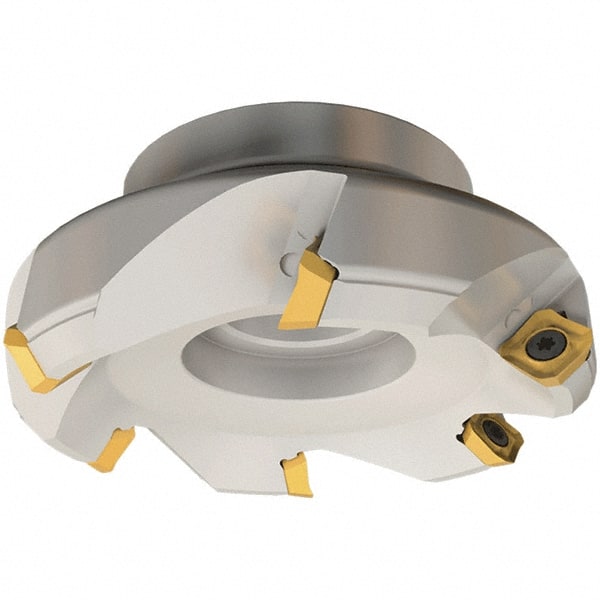

Iscar - 75mm Cut Diam, 22mm Arbor Hole, 6.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, SE.. Insert, Right Hand Cut, 5 Flutes, Series IscarMill
Item #: 91123216
Brand: Iscar
Model #: 3100371
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 75.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 45 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | SE.. |
| Series | IscarMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | F45ST |
| Number of Flutes | 5 |
| Keyway Width (mm) | 10.40 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | SEHT-AFN; SEHW-AFTN; SEKT-AF-R; SEKT-AFTN; SEMT 12..AFTN-76; SEMT 1204AF-R-HS; SEMW 1204AFTN |
