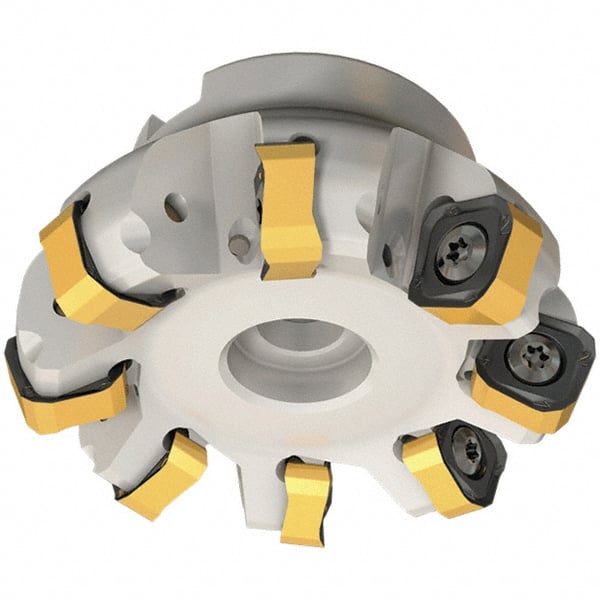

Iscar - 134.7mm Cut Diam, 40mm Arbor Hole, 6mm Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 16 Inserts, OXMT 0507\xB6RXMT 1607\xB6S865 SNMU 1305 Insert, Right Hand Cut, 16 Flutes, Through Coolant, Series Helido
Item #: 91123398
Brand: Iscar
Model #: 3105736
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 134.70 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 65 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | OXMT 0507; RXMT 1607; S865 SNMU 1305 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | S865 FSN-13 |
| Number of Flutes | 16 |
| Keyway Width (mm) | 16.40 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0200 |
| Counterbore Diameter (Decimal Inch) | 2.0870 |
| Complete Insert Compatibility | OXMT 0507; RXMT 1607; S865 SNMU 1305ZNTR |
