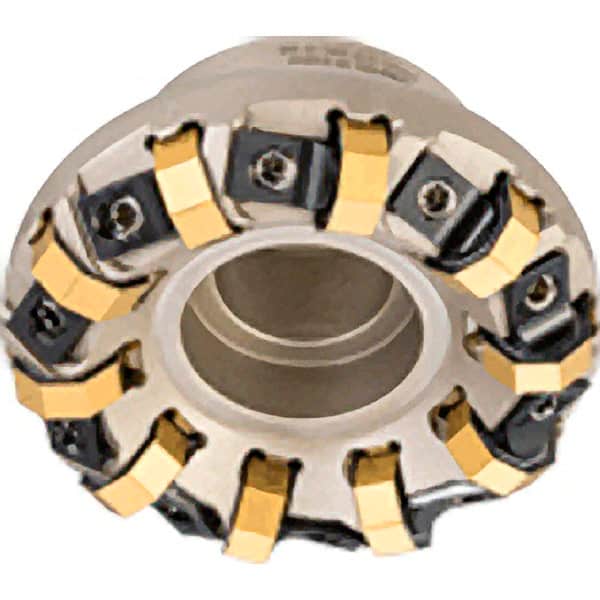

Iscar - 2.91" Cut Diam, 1" Arbor Hole, 0.138" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, ON.U 05\xB6S845 SN.U 13 Insert, Right Hand Cut, 10 Flutes, Series Helido
Item #: 91123406
Brand: Iscar
Model #: 3105789
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.9100 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | ON.U 05; S845 SN.U 13 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Wedge |
| Cutter Style | SOF45CL |
| Number of Flutes | 10 |
| Maximum Body Diameter (Decimal Inch) | 2.9100 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.1380 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | ONHU 0505-W; ONHU/ONMU-05; S845 SNHU 1305-W; S845 SNMU/SNHU-13 |
