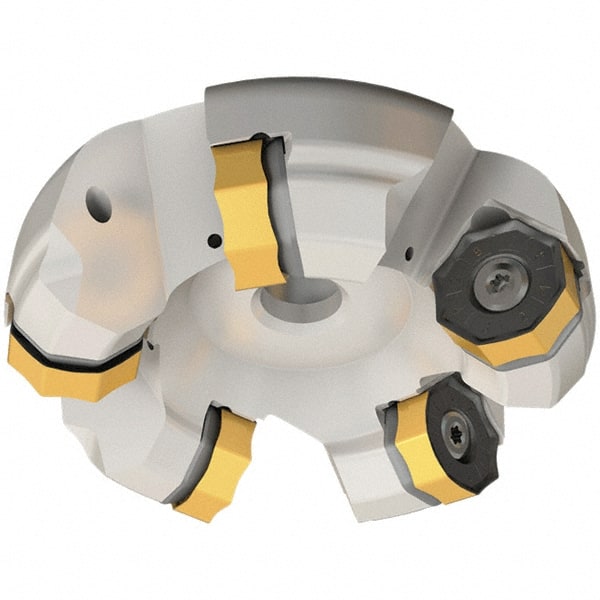

Iscar - 184.5mm Cut Diam, 40mm Arbor Hole, 7mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, ONMU 1008\xB6S845 SNMU 2608 Insert, Right Hand Cut, 8 Flutes, Series Helido
Item #: 91123505
Brand: Iscar
Model #: 3106340
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 184.50 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 45 |
| Overall Height (mm) | 60.80 |
| Insert Compatibility | ONMU 1008; S845 SNMU 2608 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.00 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | SOF45-26 |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 92.00 |
| Keyway Width (mm) | 16.40 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Counterbore Diameter (Decimal Inch) | 2.1650 |
| Complete Insert Compatibility | ONMU 1008; S845 SNMU 2608 |
