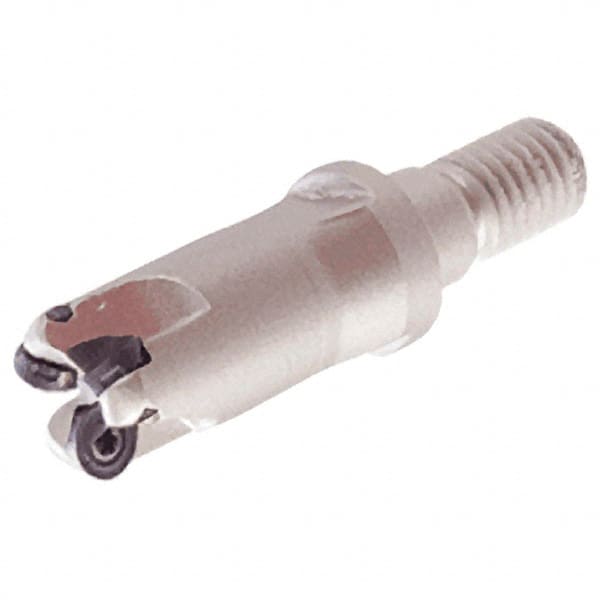

Iscar - 25mm Cutting Diam, 10mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, R90CW, R90MT, RXCR, RXCW, RXMT Insert, ER-M Toolholder
Item #: 91123745
Brand: Iscar
Model #: 3103951
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 3 |
| Insert Style | R90CW; R90MT; RXCR; RXCW; RXMT |
| Toolholder Style | ER-M |
| Series | FlexFit; RoundMill |
| Overall Length (mm) | 35.00 |
| Insert Diameter (mm) | 10.00 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 15.00 |
| Head Length (mm) | 35.00 |
| Modular Connection Size | M12 |
