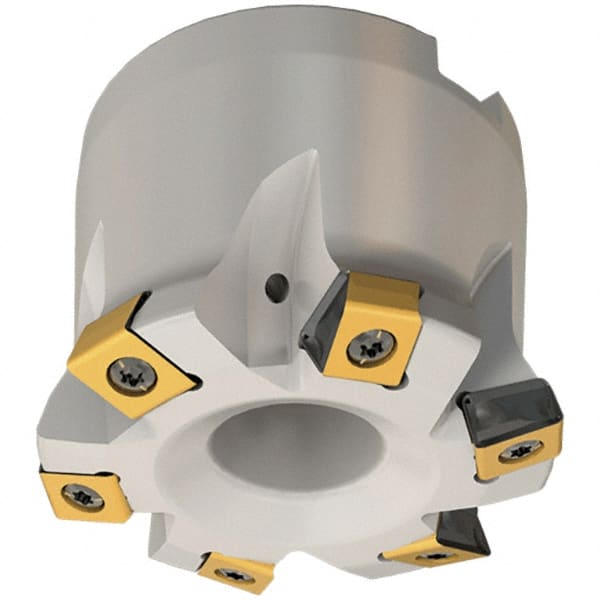

Iscar - 6 Inserts, 2.48" Cutter Diam, 0.071" Max Depth of Cut, Indexable High-Feed Face Mill - 1.063" Arbor Hole Diam, 0.488" Keyway Width, 1.969" High, FTP-LN10 Toolholder, LNHT 1006 Inserts, Series Helitang
Item #: 91133389
Brand: Iscar
Model #: 3105731
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4800 |
| Maximum Depth of Cut (Decimal Inch) | 0.0710 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | Helitang |
| Cutter Style | FTP-LN10 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | LNHT 1006 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 2.4800 |
| Through Coolant | Yes |
| Complete Insert Compatibility | FTP LNHT 1006; HTP LNHT 1006 |
| Keyway Width (Decimal Inch) | 0.4880 |
