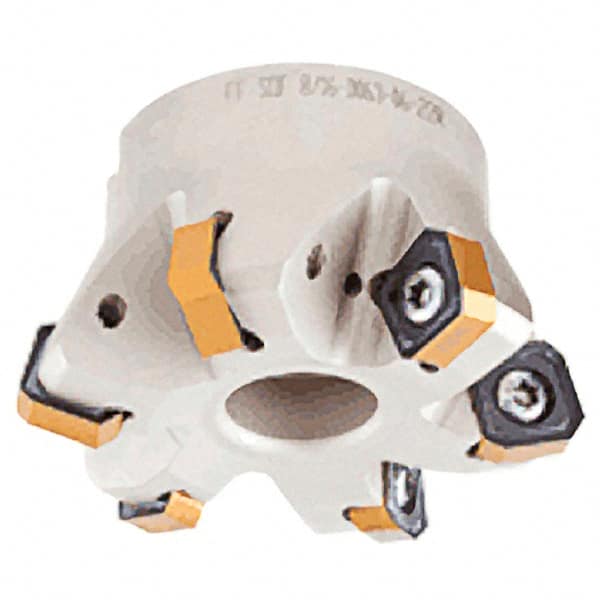

Iscar - 6 Inserts, 2.693" Cutter Diam, 0.047" Max Depth of Cut, Indexable High-Feed Face Mill - 0.866" Arbor Hole Diam, 0.429" Keyway Width, 1.575" High, FF SOF Toolholder, ON.U 05, OXMT 0507, S845 SN.U 13 Inserts, Series Helido
Item #: 91133413
Brand: Iscar
Model #: 3105660
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.6930 |
| Maximum Depth of Cut (Decimal Inch) | 0.0470 |
| Arbor Hole Diameter (Decimal Inch) | 0.8660 |
| Overall Height (Decimal Inch) | 1.5750 |
| Series | Helido |
| Cutter Style | FF SOF |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | ON.U 05, OXMT 0507, S845 SN.U 13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 2.6930 |
| Through Coolant | Yes |
| Complete Insert Compatibility | ONHU/ONMU-05; OXMT 0507; S845 SNMU/SNHU-13 |
| Keyway Width (Decimal Inch) | 0.4290 |
