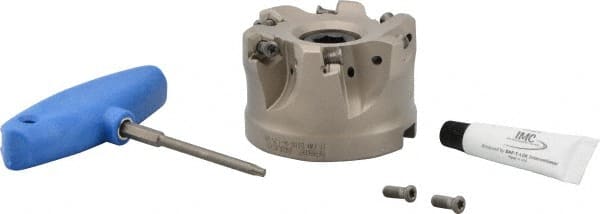

Iscar - 6 Inserts, 3" Cutter Diam, 0.08" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/4" Arbor Hole Diam, 2" High, FF FWX-08 Toolholder, H600 WXCU 08 Inserts, Series Helido
Item #: 91133470
Brand: Iscar
Model #: 3105248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | Helido |
| Cutter Style | FF FWX-08 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | H600 WXCU 08 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Complete Insert Compatibility | H600 WXCU 08 |
