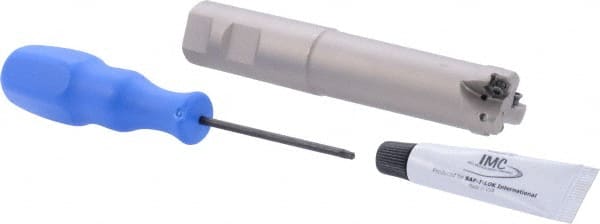

Iscar - 1" Cut Diam, 0.04" Max Depth, 1" Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, H600 WXCU 05 Insert, FF EWX-05 Toolholder, Through Coolant
Item #: 91133777
Brand: Iscar
Model #: 3105545
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 3 |
| Insert Style | H600 WXCU 05 |
| Toolholder Style | FF EWX-05 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6100 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 3.1200 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.4500 |
| Manufacturers Catalog Number | FF EWXD1.00-3-3.0W1.00-05 |
