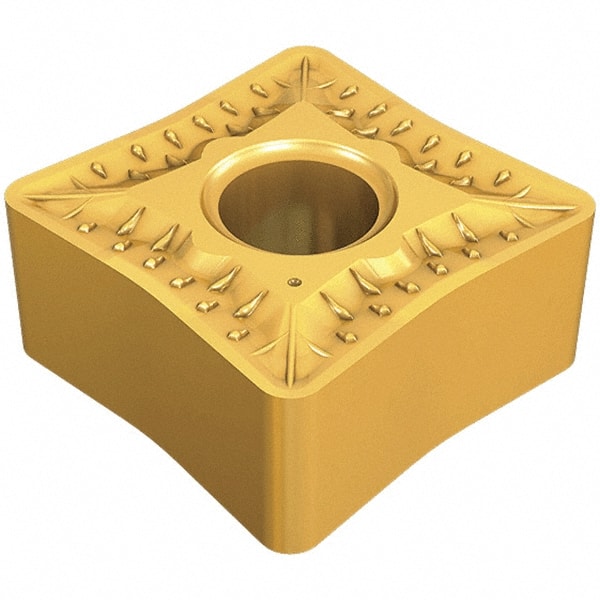

Iscar - QNMG332 GN Grade IC8150 Carbide Turning Insert - TiCN/Al2O3 Finish, 80° Square, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 91140269
Brand: Iscar
Model #: 5550373
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QNMG |
| Insert Size | 332 |
| Material | Carbide |
| Length (mm) | 10.32 |
| Length (Decimal Inch) | 0.4063 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | GN |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Lever Lock |
| Shape | Square |
