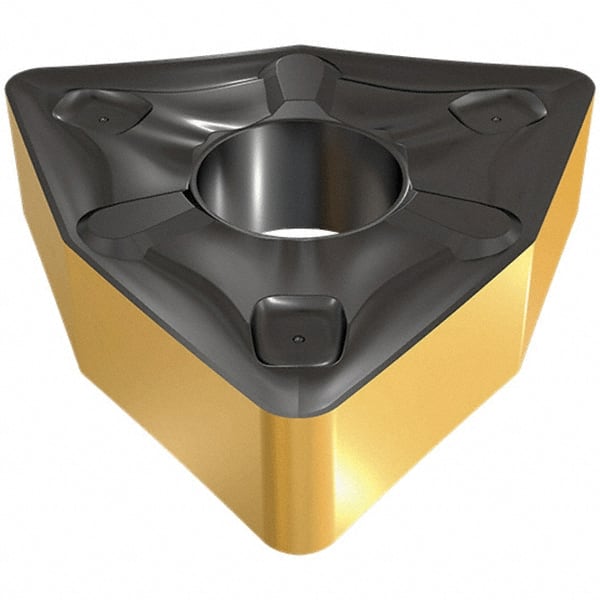

Iscar - WNMG644 TNM Grade IC9250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 91144667
Brand: Iscar
Model #: 5507316
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 644 |
| Material | Carbide |
| Length (mm) | 13.03 |
| Length (Decimal Inch) | 0.5130 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | IC9250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | TNM |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
