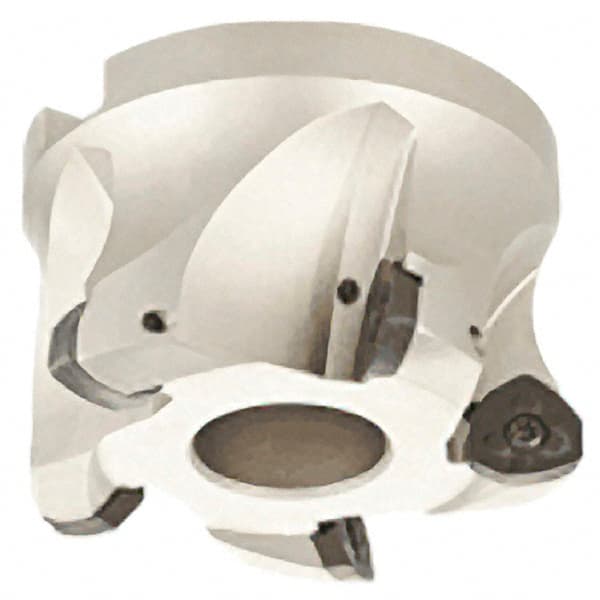

Iscar - 4 Inserts, 1.575" Cutter Diam, 0.059" Max Depth of Cut, Indexable High-Feed Face Mill - 0.63" Arbor Hole Diam, 0.331" Keyway Width, 1.378" High, FF FW Toolholder, FF WO.. Inserts, Series FeedMill
Item #: 91146258
Brand: Iscar
Model #: 3103244
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Arbor Hole Diameter (Decimal Inch) | 0.6300 |
| Overall Height (Decimal Inch) | 1.3780 |
| Series | FeedMill |
| Cutter Style | FF FW |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | FF WO.. |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 1.5750 |
| Through Coolant | Yes |
| Complete Insert Compatibility | FF WOMT/WOCT; FF WOMW |
| Keyway Width (Decimal Inch) | 0.3310 |
