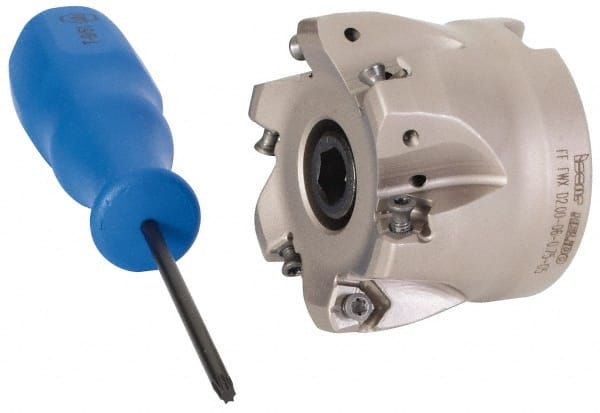

Iscar - 6 Inserts, 1.61" Cutter Diam, 0.04" Max Depth of Cut, Indexable High-Feed Face Mill - 3/4" Arbor Hole Diam, 1.5" High, FF FWX-05 Toolholder, H600 WXCU 05 Inserts, Series Helido
Item #: 91146290
Brand: Iscar
Model #: 3105715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.6100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.5000 |
| Series | Helido |
| Cutter Style | FF FWX-05 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | H600 WXCU 05 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Complete Insert Compatibility | H600 WXCU 05 |
| Manufacturers Catalog Number | FF FWX D2.00-06-0.75-05 |
