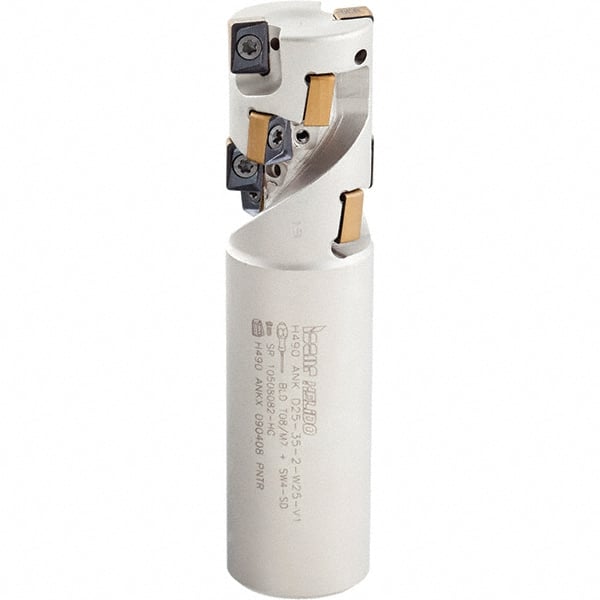

Iscar - 1-1/4" Cut Diam, 1.68" Max Depth of Cut, 1-1/4" Shank Diam, 4.52" OAL, Indexable Square Shoulder Helical End Mill - H490 ANKX 09.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Helido
Item #: 91148106
Brand: Iscar
Model #: 3105907
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.5200 |
| Lead Angle | 90 |
| Series | Helido |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.6800 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | H490 ANK-09 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.9600 |
| Weldon Flat | Yes |
| Insert Compatibility | H490 ANKX 09.. |
| Shank Length (Decimal Inch) | 2.5600 |
