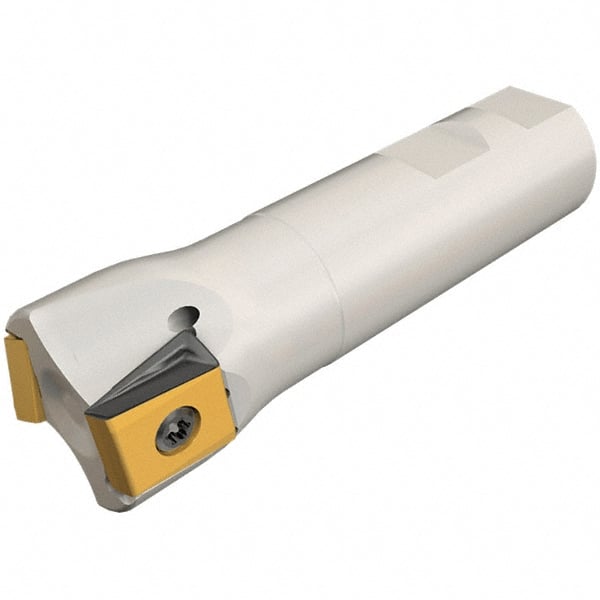

Iscar - 1-1/2" Cut Diam, 0.63" Max Depth of Cut, 1" Shank Diam, 4" OAL, Indexable Square Shoulder Helical End Mill - T490 LN.T 1607 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Helitang
Item #: 91148643
Brand: Iscar
Model #: 3105483
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 90 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | T490 ELN-16 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.7200 |
| Weldon Flat | Yes |
| Insert Compatibility | T490 LN.T 1607 |
| Shank Length (Decimal Inch) | 2.2800 |
