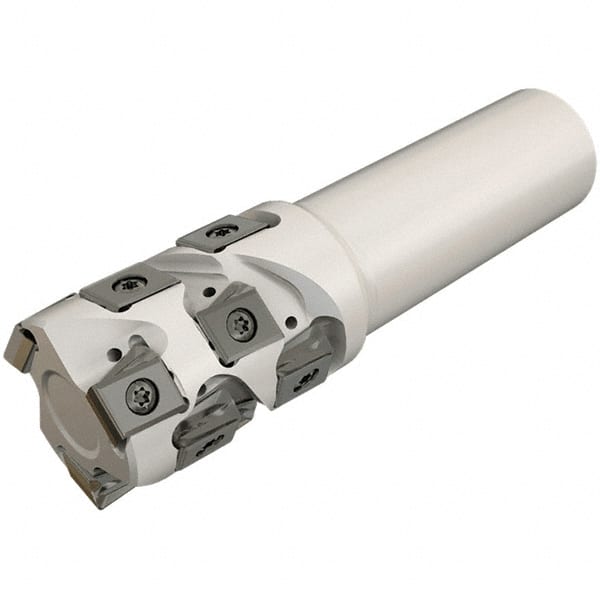

Iscar - 50mm Cut Diam, 59mm Max Depth of Cut, 40mm Shank Diam, 135mm OAL, Indexable Square Shoulder End Mill - T490 LN.T 1306 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Helitang
Item #: 91149195
Brand: Iscar
Model #: 3105081
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 40.00 |
| Overall Length/Projection (mm) | 135.00 |
| Lead Angle | 90 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 59.00 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T490 LNK-13 |
| Number of Flutes | 4 |
| Head Length (mm) | 65.00 |
| Weldon Flat | Yes |
| Insert Compatibility | T490 LN.T 1306 |
| Shank Length (mm) | 70.00 |
