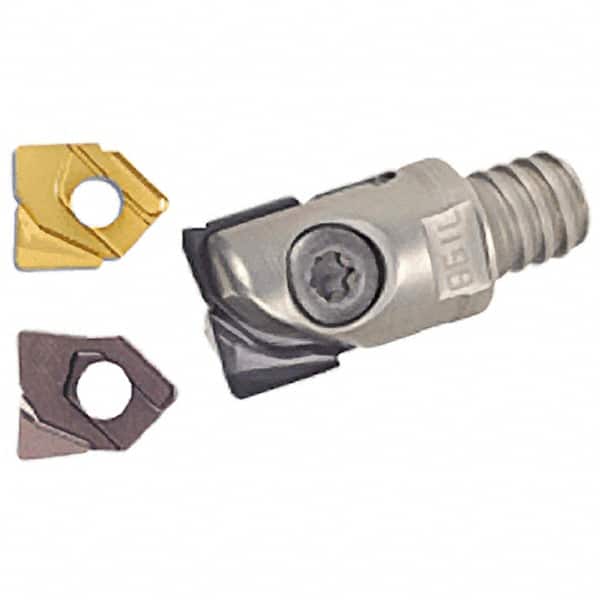

Iscar - 12mm Cut Diam, 20mm OAL, Indexable Square Shoulder End Mill - H.. QF Inserts, T08 Modular Connection, Series BallPlus, Multimaster
Item #: 91149500
Brand: Iscar
Model #: 3104310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Shank Type | Modular Connection |
| Modular Connection Size | T08 |
| Overall Length/Projection (mm) | 20.00 |
| Overall Length/Projection (Decimal Inch) | 0.7874 |
| Series | BallPlus, Multimaster |
| Through Coolant | Noncoolant Through |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HCE-MM |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Insert Compatibility | H.. QF |
