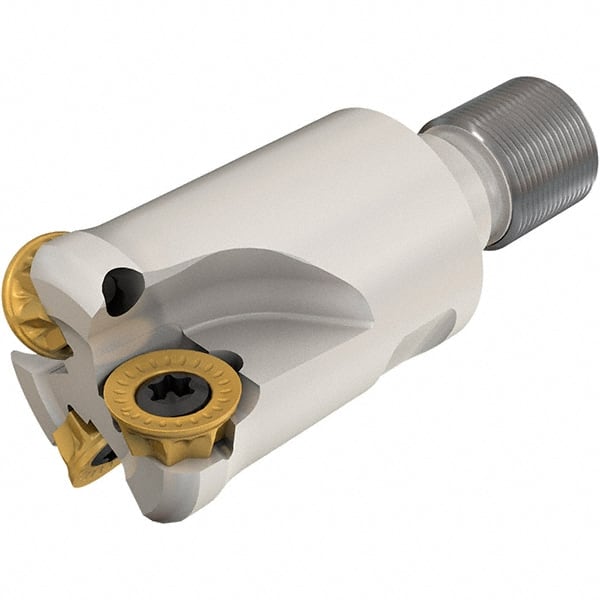

Iscar - 3/4" Cut Diam, 0.85" Max Depth of Cut, 3/4" Shank Diam, 3-1/2" OAL, Indexable Square Shoulder End Mill - HP ANK-07.. Inserts, Weldon Shank, 90° Lead Angle, Series Heliplus
Item #: 91149823
Brand: Iscar
Model #: 3103837
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.5000 |
| Lead Angle | 90 |
| Series | Heliplus |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.8500 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HP ANK-07 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | Yes |
| Insert Compatibility | HP ANK-07.. |
| Shank Length (Decimal Inch) | 2.2500 |
