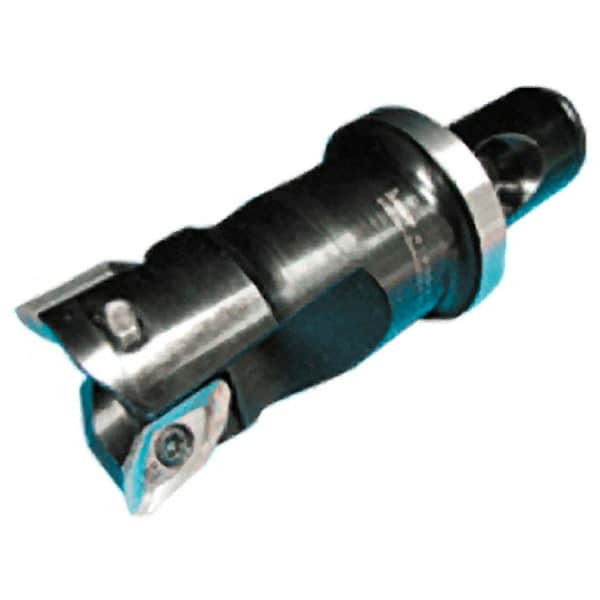

Iscar - 1-1/4" Cut Diam, 0.622" Max Depth of Cut, 3.81" OAL, Indexable Square Shoulder End Mill - HM90 APCR 1605.. Inserts, CF4 Modular Connection, 90° Lead Angle, Through Coolant, Series ClickFit, Helialu
Item #: 91150318
Brand: Iscar
Model #: 3102760
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | CF4 |
| Overall Length/Projection (Decimal Inch) | 3.8100 |
| Lead Angle | 90 |
| Series | ClickFit, Helialu |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 EAL-CF4-16 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.8100 |
| Insert Compatibility | HM90 APCR 1605.. |
| Maximum RPM | 7000 |
