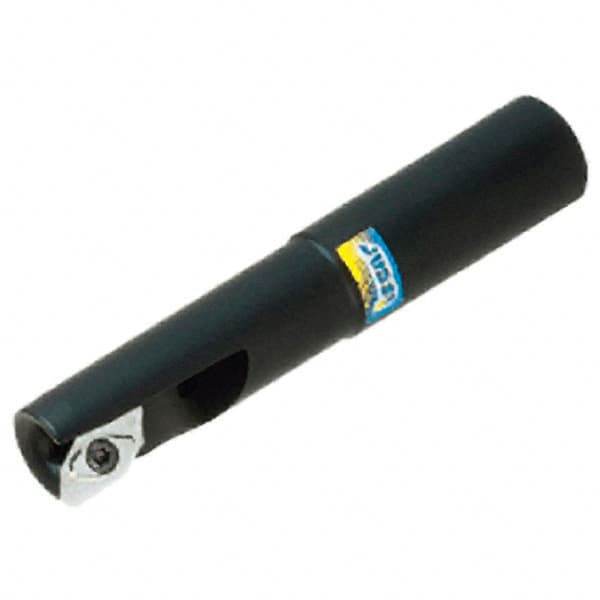

Iscar - 1-1/2" Cut Diam, 0.622" Max Depth of Cut, 1-1/4" Shank Diam, 6" OAL, Indexable Square Shoulder End Mill - HM90 APCR 1605.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Helialu
Item #: 91150391
Brand: Iscar
Model #: 3102305
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 6.0000 |
| Lead Angle | 90 |
| Series | Helialu |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 EAL-16 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.4400 |
| Weldon Flat | No |
| Insert Compatibility | HM90 APCR 1605.. |
| Shank Length (Decimal Inch) | 2.5600 |
| Maximum RPM | 45600 |
