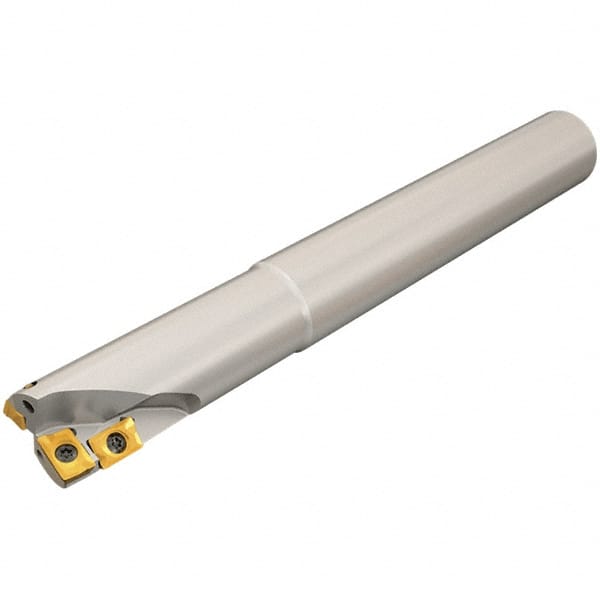

Iscar - 38mm Cut Diam, 38mm Max Depth of Cut, 32mm Shank Diam, 130mm OAL, Indexable Square Shoulder End Mill - A.KT Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Helimill
Item #: 91150797
Brand: Iscar
Model #: 3100841
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.00 |
| Cutting Diameter (Decimal Inch) | 1.4960 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Overall Length/Projection (mm) | 130.00 |
| Overall Length/Projection (Decimal Inch) | 5.1181 |
| Lead Angle | 90 |
| Series | Helimill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4960 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | E90AC |
| Number of Flutes | 2 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Insert Compatibility | A.KT |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.00 |
